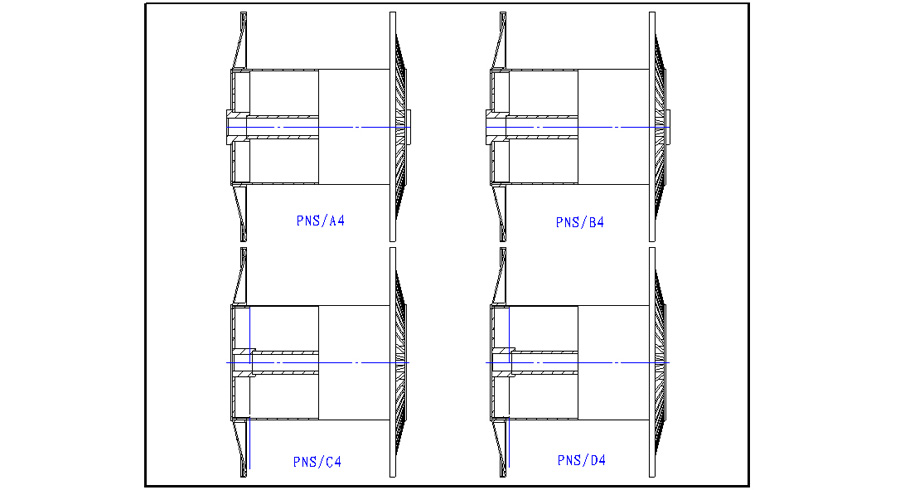

PN Corrugated Processing Reel is used with bunching machine, stranding machine, cabling machine, extrusion line and armoring machine.

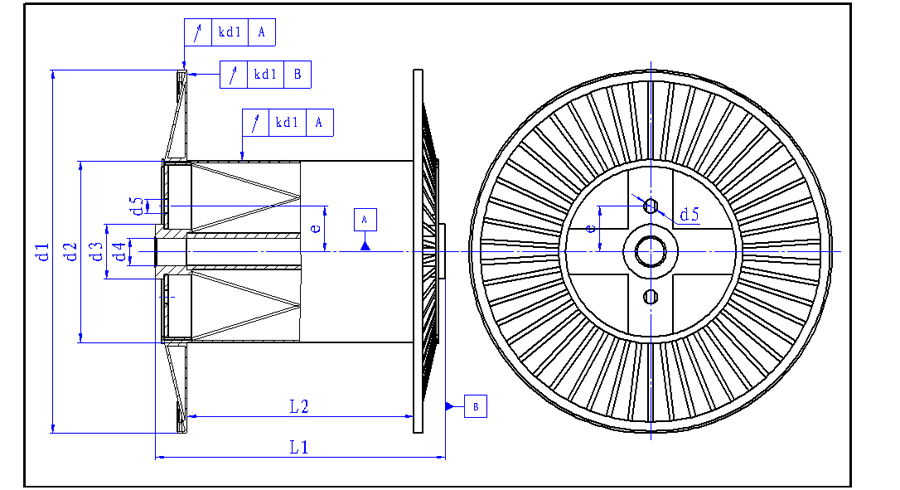

Main Technical Specifications:
|
d1 |
d2 |
d3 |
d4 |
d5 |
e |
l1 |
l2 |
|
800 |
400 |
160 |
80 |
40 |
160 |
600 |
500 |
|
900 |
450 |
670 |
560 |
||||
|
1000 |
500 |
750 |
630 |
||||
|
1150 |
560 |
850 |
710 |
||||
|
1250 |
630 |
950 |
800 |
||||
|
1400 |
710 |
65 |
300 |
1060 |
900 |
||
|
1600 |
800 |
1180 |
1000 |
||||
|
1800 |
1000 |
200 |
100 |
1320 |
1120 |
||
|
2000 |
1120 |
250 |
125 |
1500 |
1250 |
||
|
2240 |
1250 |
1700 |
1400 |
||||
|
2500 |
1500 |
1900 |
1600 |
||||
|
2800 |
1800 |
280 |
140 |
2120 |
1800 |
||
|
3150 |
1900 |
300 |
160 |
500 |
2300 |
2000 |
